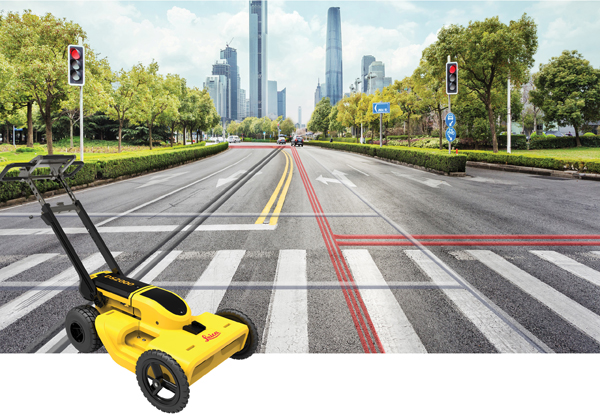

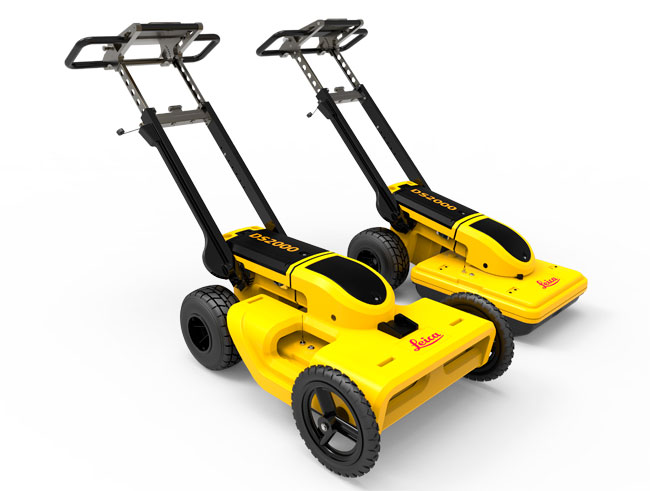

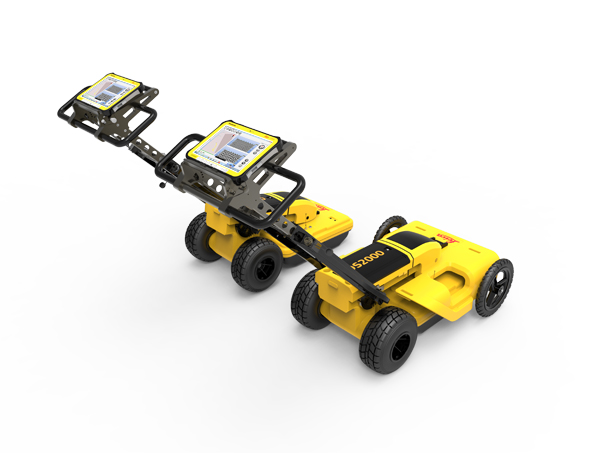

Georadar Leica DS2000
-










There’s a lot going on underground that you need to know about before you ever start to dig. The Leica DS2000 Utility Detection Radar finds all potential threats, including non-conductive pipes and fibre optics, increasing safety by lowering the risk of accidently hitting underground assets.
Increase safety, speed up work and lower asset management costs with the ability to prevent hazardous outages and collect more information. The DS2000 betters your business by making it safer, faster and more efficient.



KEY BENEFITS
ok Increase safety when the DS2000 identifies all potential threats
ok Get to assets and recover quicker from outages when you know exactly where underground utility assets are located
ok Dual-frequency antenna to detect deep and shallow targets simultaneously
ok Easily collect and understand data with the DS2000’s simple and intuitive software and data storage
ok Effortlessly maneuver around the most challenging sites with the DS2000’s advanced ergonomics
ok Without GPS, map onsite with no post processing needed when data is stored on the tablet
ok Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
ok PROTECT by Leica Geosystems - the strongest warranty in the market





Catálogo Georadar DS2000

Todos los detalles



solicitar oferta Georadar Leica DS2000



DUAL-FREQUENCY ANTENNA
Antenna footprint
40 x 50 cm
Hardware channels
2
Antenna central frequencies
250 MHz and 700 MHz
Antenna orientation
Perpendicular, broadside
Sampling frequency
400 kHz
DATA ACQUISITION
Acquisition speed
More than 10 km/h
Scan rate per channel for 512 samples per scan
381 scans per second
Scan interval
42 scan per metre
Positioning
2 integrated encoders - GPS and/or TPS
CONTROL UNIT
Power consumption / supply
13.3 W / Rechargeable SLAB (Sealed Lead Acid Battery)
12 V DC, 12 Ah
Operating temperature range
–10° C to +40° C
Weight
24 kg    -     27 kg
Protection
IP65











-









Las ilustraciones, descripciones y datos técnicos no son vinculantes y pueden ser modificados sin previo aviso.
